Photos of Laser Sonics YAG Laser

This is a Laser Sonics model 8000, 150 W medical YAG laser system, pulsed or CW, which runs on three-phase 230 VAC.

(Photos and descriptions provided courtesy of: Curt Graber (cgraber@fwi.com).)

Laser Sonics model 8000 YAG Laser (Gallery)
- View 01 - Optics, top view.
- View 02 - Laser cavity.
- View 03 - Control panel.

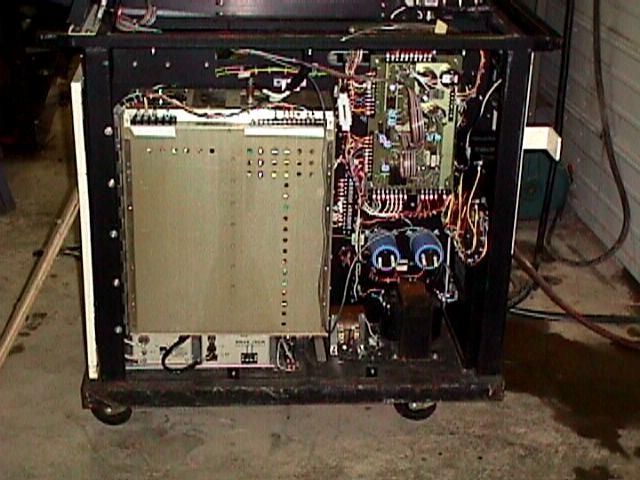

- View 04 - Power supply.
- View 05 - Cooling system.
- View 06 - Homemade phase inverter system (converts 230 VAC single-phase 120 A service into 230 VAC three-phase 110 A service).

There is much more information on ion lasers in Sam's Laser FAQ beginning with the chapter: Argon/Krypton Ion Lasers.

Laser Sonics model 8000 YAG Laser

View 01 View 02 View 03

View 04 View 05 View 06
