    Introduction

    The Univac 1830 (formally known as the CP-823/U) was developed in the early 1960s for the U.S. Navy as part of their P3 Orion program. This was one of the first digital computers to use integrated circuits for most of its logic and despite its total weight of well over 500 pounds, was considered "compact and portable" for installation on an airplane. ;-) It was a stored program computer with a word length of 30 bits, a mixture of core and plated wire memory with a capacity of up to 32,768 32 bit words and cycle time of 4 µs. Each 4K 30 bit word block occupied a cube around 5 or 6 inches on a side. Those with core probably consisted of a stack of 64x64 bit planes 32 words deep. I don't know how the plated wire memory was physically organized but it was probably similar. In 2025, the same amount of memory would use less than 1/10,000th the capacity of a modern DRAM chip with a cycle time 1,000 times shorter. Thank you Moore's Law. ;-)

    The Operator's Console fully satisfied my requirement that any true digital system be outfitted with a slew of switches and lights (though this one is less impressive than some non-portable computers of the day). It has around 180 indicators/buttons. These each consist of a neon lamp and most are also a push-button switch for toggling a bit or changing the computer's state.

    Wikipedia has more general information on the 1830 so there is no need to repeat it here. But the best repository for 1830 information that I am aware of is on Todd Thomas's Website on which he has put together a large stash of photos of the electronic boxes and PCBs, and scans of the logic diagrams and schematics, and of the architecture and programming manuals. He acquired the entire system and all its documentation from me. The only 1830 bits (no pun) I still have are the two 46+ year old Kodachrome slides from which the photos below were made. That they are still in pristine condition says something about the longivity of some types of reasonably well cared-for analog media. Good luck recovering anything from 46 year old magnetic tape! :( ;-) Links to the Wikipedia 1830 (CP823/U) entry and Todd Thomas's Website are at the end of this page.

    Off-site links open in a single separate tab or window depending on your browser's settings.



  • Back to 1830 Table of Contents.

    My Involvement with the 1830

    My association with the 1830 came about while an undergraduate student in the Electrical Engineering department at Drexel University, Philadelphia, Pennsylvania, USA, or shortly thereafter. The 1830 had been donated to the university prior to its name change from Drexel Institute of Technology in 1970. According to information on Todd Thomas's Web site (which I was not aware of even though it originated from me!), the system was actually operational and used by students sometime between 1970 and 1973. That is also strange since those are the precise years when I attended Drexel full time in the EE department and had been deeply involved in the restoration of the Autonetics D17B Computer. (See: The Autonetics D17B Minuteman I Missile Guidance Computer.) But once much more capable minicomputers became affordable - or were donated to universities by companies like Digital Equipment Corporation (remember DEC?), there was the inevitable question of what to do with the 1830! The space it occupied (spread across and under multiple lab benches when I first came across it) was by then no doubt considered more valuable than then an obsolete computer in the minds of the bean counters regardless of its possible historical significance. I must have casually asked about what was being done with it (foolish me!) and of course jumped at the opportunity to acquire any real computer in the 1970s and was probably somewhat of a fool to accept their offer to give it to me free as long as I carted it away, not realizing what I was undertaking. My parents were probably not thrilled either. But the many hundreds of pounds of electronics boxes, cables, and documentation somehow made it to my small row home in Philadelphia via multiple trips in a Chevy sedan. The details are not at all clear, nor where everything was stored there.

    For a while it just sat and gathered dust but then in late 1978 I had the irresistible urge to at least power up parts of the system to see what it could do. The memory system was known to be defective, it probably had a tag on it stating something to this effect as there is absolute positively no chance that anyone at Drexel had made any attempt to apply power to any of this! Whether the documentation stated that the CPU and Console could be run stand-alone is not known, but that is what I decided to do. Now this thing doesn't exactly plug into a wall socket. There was something called the "Power Supply Unit" that may have been useful but for some reason I didn't want to use that as it would have probably taken a week just to locate the required cables, only to find that it still didn't have a normal AC plug and/or only ate three-phase. More than a half dozen DC voltages are required to run the the CPU and Console and few if any of those were available in my collection of junk parts. Back in those days before on-line surplus places and eBay, DC power supplies where not nearly as readily available as they are in 2025. There was a place in Phila named Herbach and Rademan which has all sorts of surplus electronics but I doubt they were considered for this undertaking. So I decided to simply build up power supplies using basic parts of which I did have a fair inventory from salvaging all sorts of consumer electronics and such. These were probably all unregulated power supplies with just a power transformer, rectifier, and massive filter capacitor(s). I did have an oscilloscope so it would have been possible to check ripple, but don't recall if that was ever done. Somehow they did the job though.

    The two photos below show the only documented result. Exactly what made me decide to take color slides of the Console in operation is also fussy. Probably there were a couple of shots remaining on a roll of film with travel pictures as I am so far unable to locate any other shots of the 1830. As noted below, these may be the only surviving color photos of the 1830 actually powered, and in the case of one of them, executing code of sorts. ;-)

    Then it sat - for years except for when I moved to the suburbs from Phila. At least professional movers dealt with that one. ;-)

    Since it was basically just taking up space from then on, I listed it on my classified page at RepairFAQ.org. (With the rise of eBay, that page has been retired.) Here is the description (typos and all):

    Univac 1830 prototype. :) Airforce avionics computer, 8 boxes, each at least a foot cube, 50 or more pounds each, really cool front panel with more switches and lights anything you have likely seen lately. Complete schematics and user manual. No power supply (expected 28 VAC, 400 Hz or something equally difficult to supply without buying a special system and used a half dozen or more different DC voltages.) Just kidding - sorry, it isn't for sale yet. This was one of the first IC based computers ever built. Circa 1960. I actually had the CPU and front panel working with a kludged together collection of power supplies (it would run loops out of its internal registers). The huge (physically, at least, it was the largest box) 32k, 30 bit word core and plated wire memory never worked for me, however.

    This states that it "isn't for sale yet", and there was no price. ;-) But that is probably where Todd Thomas found it. And the rest, as they say, is history. As I recall, Todd did not come and pick up the system, so shipping was another real treat. Each component was packed in its own padded cardboard box and a few were sent at a time. At least the weight of the individual boxes came in under the limit for UPS. ;-)

    Interestingly (to me at least), after that, except for a version of the third photo, below which Todd sent to me to confirm that everything arrived safely, I have had no further contact with him to this day and wasn't even aware of his Website until discovering it while researching info for this writeup in 2025. If I had remained in contact, there is a lot more that I might have asked him to document. Or perhaps, it was better to have lost contact.....



  • Back to 1830 Table of Contents.

    Photographs

    The only visual record I currently have of the Univac 1830 are a pair of Kodachrome 35 mm slides taken in September 1978 of the operator's console powered up and connected to the CPU. Versions of these are also on the Wikipedia page, along with the photo of the eight massive electronics boxes comprising the 1830. What is not shown are two or three cartons of garden hose-diameter interconnecting cables and the reams of documentation including logic diagrams, schematics, and programming manuals. An archive of some of these may be found on Todd Thomas's Website, link below. However, not surprisingly, the super large "pink sheet" logic diagrams and schematics have not been scanned for obvious reasons. Too bad, they are the good stuff.

    The main core memory was known to be faulty when I acquired the 1830 in the early 1970s and repairing it was beyond my level of determination. But the console and CPU could be powered stand-alone, which was accomplished using a half dozen or more cobbled-together DC power supplies. Few if any were regulated! It was then possible to run complex ;-) single instruction programs like "Increment" from one CPU register operating on another one, entered via the rows of neon lights which also served as push-button bit toggles. That is probably what the running program is doing.

    Those neon indicators/switches were interesting in themselves. As I recall, they were powered by low voltage DC and each one had a miniaturized inverter to generate the greater than 90 volts required for the NE2-type neon lamps. Their state was directly controlled by the DTL logic levels which switched the inverter on and off.

    The first two images are macro photographs of those slides taken in 2025 using a Nikkor DX Micro f/1:2.8 lens and home-built slide copy adapter. These may be the only surviving color photographs of a Univac 1830 in operation, sort of. ;-) Unfortunately, back in the 1970s, documenting everything with photographs was not something that was automatic and there were no smart phones in everyone's pockets. The third one is of the eight electronics boxes that comprised the 1830 taken by Todd Thomas, to whom I eventually sold the Univac 1830.

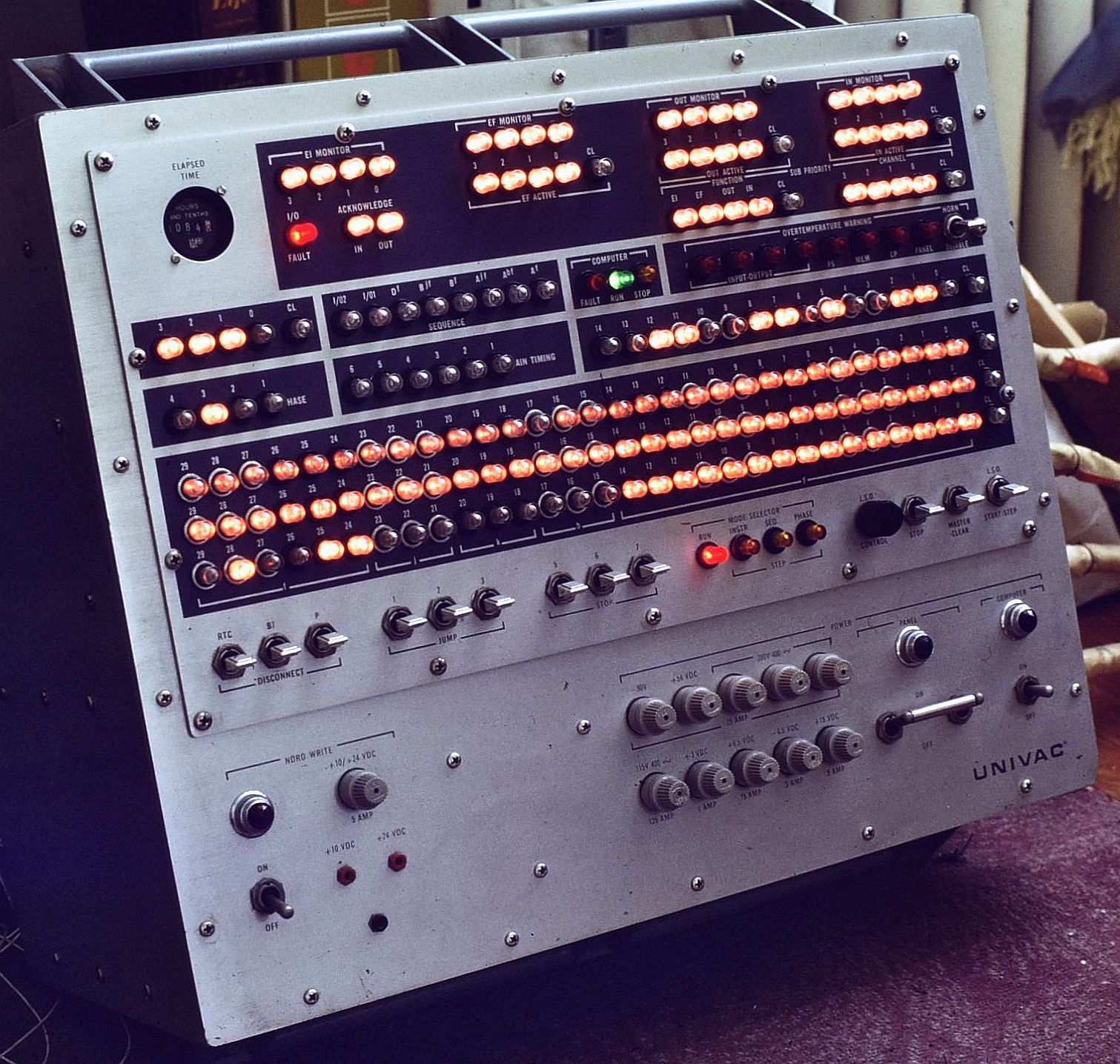

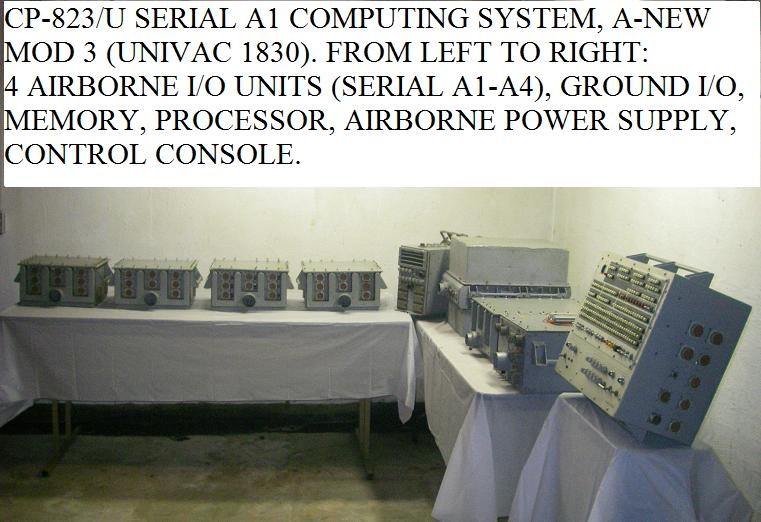

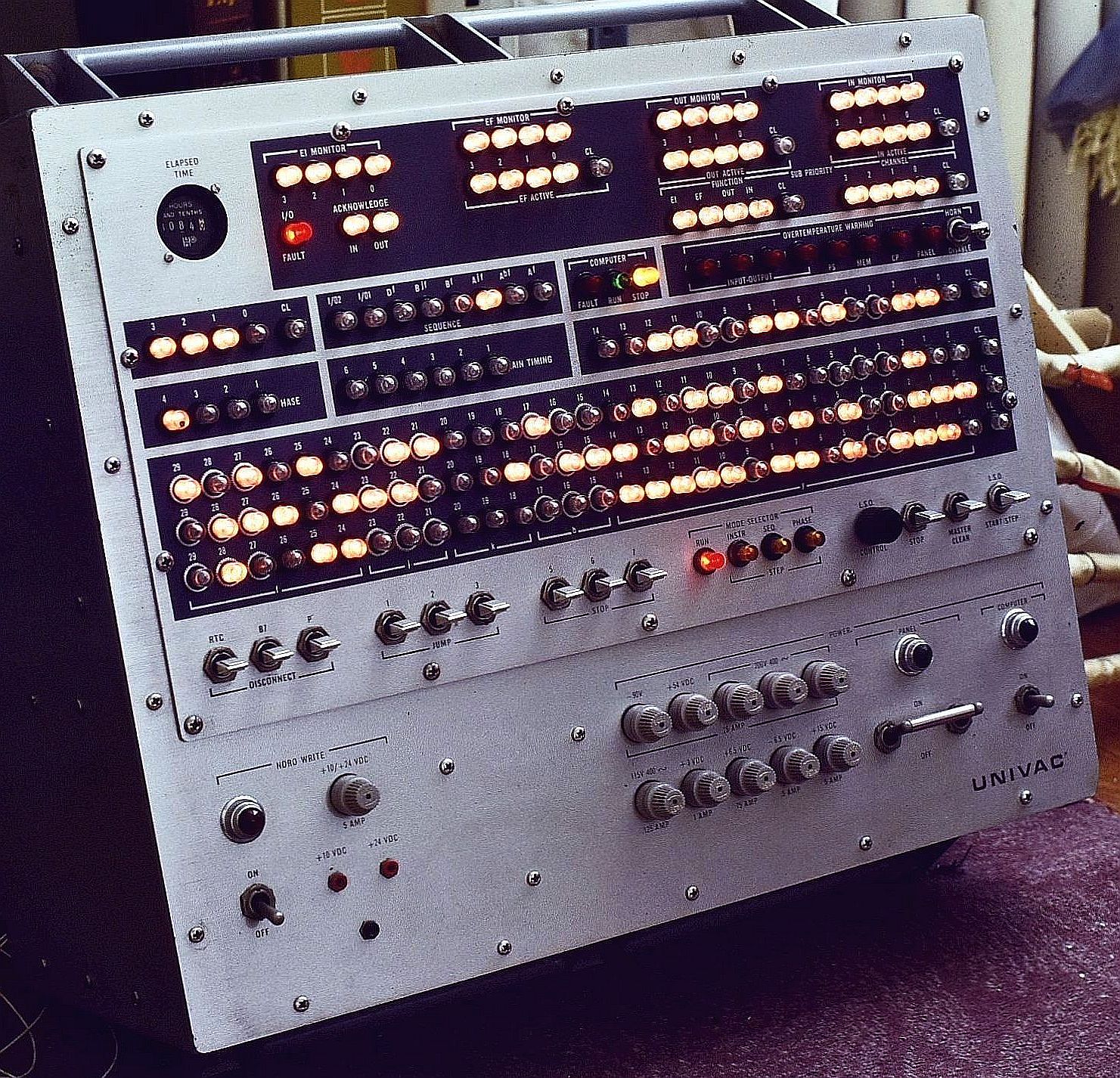

    Univac 1830 Operator's Console with Program Halted (left) and Program Running (center); Univac 1830 Electronic Boxes (right, from Wikipedia)
